Description

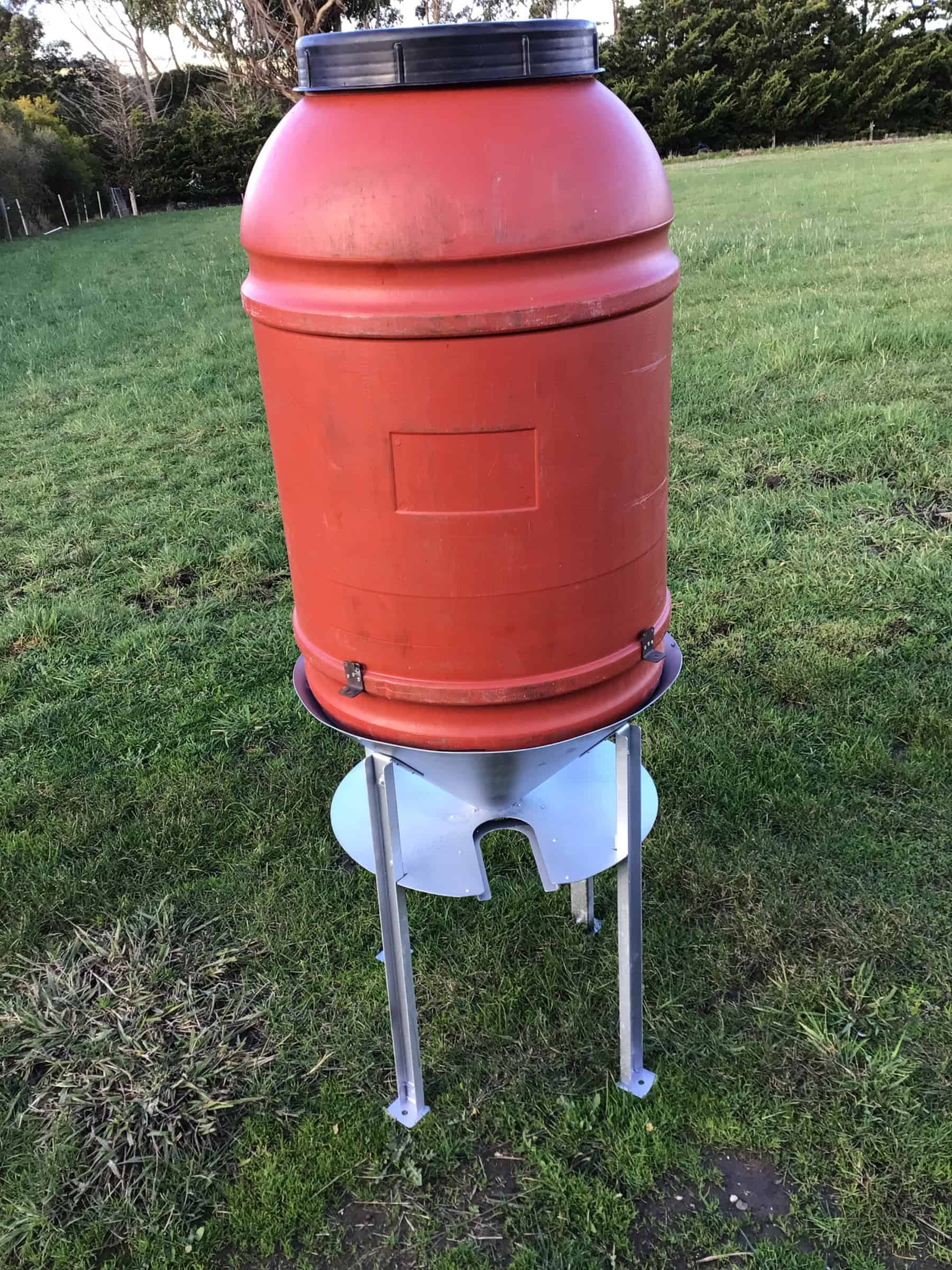

DIY Mini Silo Drum Base

Your Ultimate Animal Feeding Solution

Turn any standard 220L (44-gallon) drum into a practical, back-saving feed dispenser with our DIY Mini Silo Drum Conversion Pack.

Designed and made in Moriac, Victoria, this clever system raises your drum off the ground, allowing you to dispense feed from the bottom – keeping it fresh, dry, and rotated. No more bending, no more scooping, and no more wasted feed (or wasted drums!).

Made from galvanised steel, it’s tough, lightweight, and built to last. It seals to your drum with precision, helping to keep rodents and moisture out. All you need is your drum and a few basic tools (no welding gear or special equipment).

Whether you’re feeding chooks, horses, pigs, goats, dogs, or any other animal, this is a practical, Aussie-made solution that’ll save your back and protect your feed.

Features at a glance

Suits any 44-gallon (220L) drum with a 600mm base (metal or plastic)
Galvanised steel – durable and rust-resistant
99% sealed when installed correctly (add silicone for full seal)
Adjustable feet for uneven ground
Peg or bolt to secure in place
Easy to assemble, just add your own drum
Great for pellets, grain, kibble and more (not suitable for chaff)

Compatible Feed Types

Pellets
Grain
Dog kibble
Layer mash
Pig and goat feed
Mixed scratch feed
Not suitable for chaff or loose powders

In the box

Cone base
4 legs
4 hooks and brackets
24 rivets

Tools required

Drill
Drill Bit – No. 30 or 1/8
Rivet Gun
2 x 10mm Spanners

How to install

Our Mini Silo Drum Base is straightforward to set up – just four simple steps and you’re on the way to easy feeding!

Prepare your drum: Cut the base out of your 220L (44-gallon) drum. (Can be metal or plastic, but must have a 600mm base).
Assemble the base: Attach the 4 legs to the cone using the included bolts and rivets.
Mount the drum: Place the drum evenly onto the cone and align it so there’s an even gap all around. Optional: Add a bead of silicone for a fully sealed fit.

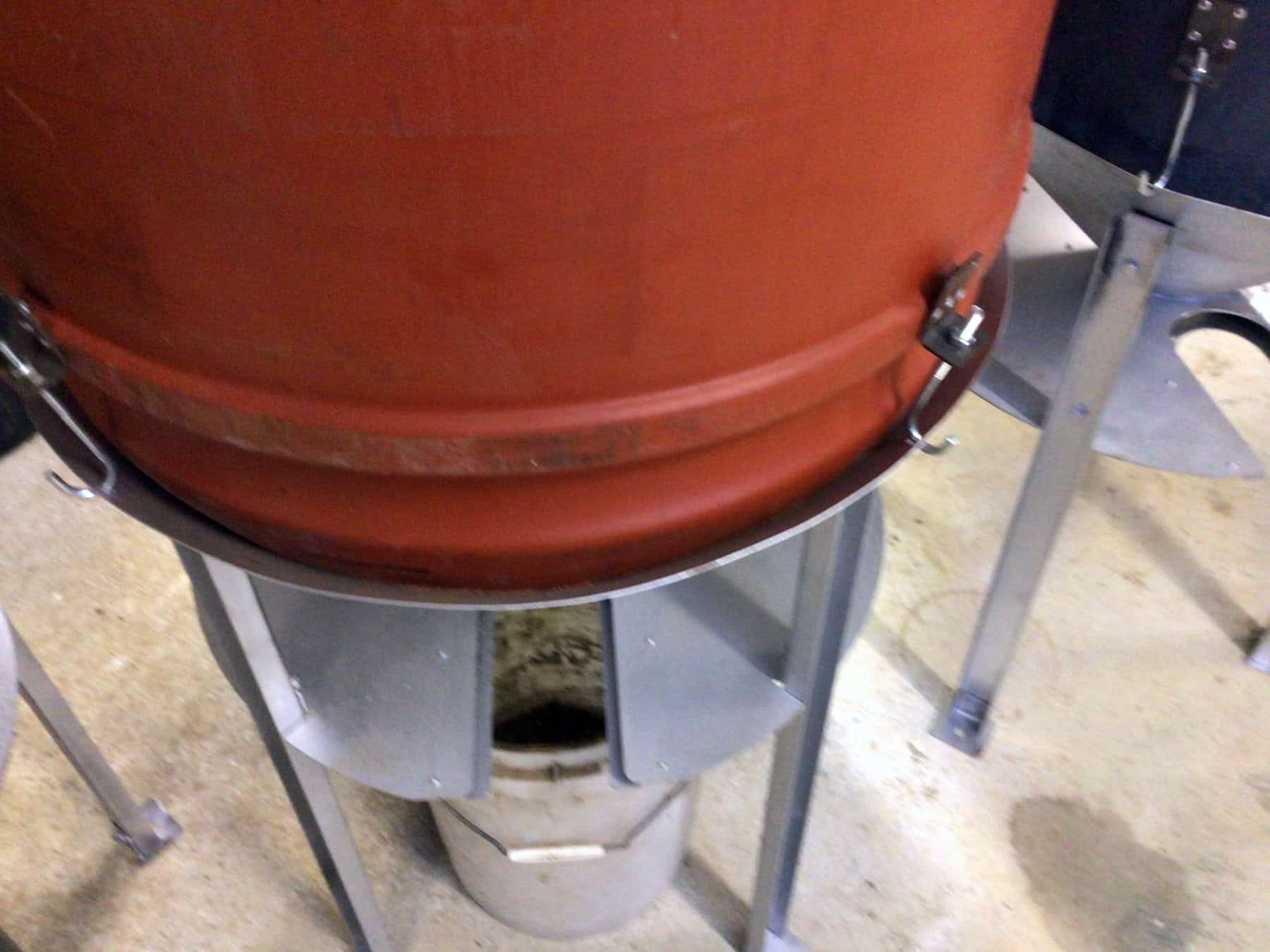

Secure with hooks: Use the supplied hooks and brackets to fix the drum to the cone. Tighten evenly (about two turns each) – do not overtighten.

Watch How to install your Mini Silo Drum Base

Additional information

Weight	9 kg
Dimensions	58 × 58 × 33 cm
Shipping Information	If the provided shipping options aren't suitable, please get in touch. We know shipping can get expensive and have done all we can to reduce freight costs, but we'll do our best to find a custom solution or workaround for you., Tip: Sometimes collecting from the post office or sending to an alternate address (even down the road) can make a huge difference in cost!
